怎样去设计一种基于STM32的循迹避障小车呢？

回帖（3）

王冬梅

2022-1-27 11:55:35

前些天博主课程设计做了一个基于STM32的循迹避障小车，用的是在某宝上买的智能小车的套件，后来闲来无事想改造成一个语音控制的小车，于是又淘了一个ld3320的语音模块，通过语音命令能够控制小车前进、后退、转弯和停止。

资料里面有stm32的例程，是用语音控制开发板的LED灯，看了资料后发现例程中使用的开发板芯片和我使用的正好相同，都是使用的stm32f103zet6芯片，所以语音模块的串口没有改动，只简单改动了一下LED灯的串口就能用了。

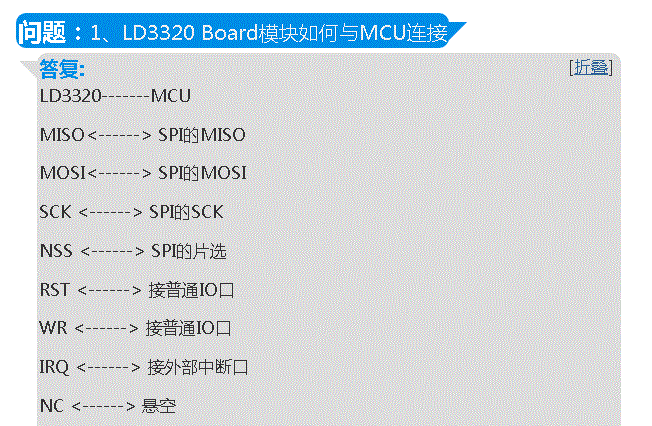

下面是LD3320的引脚图：

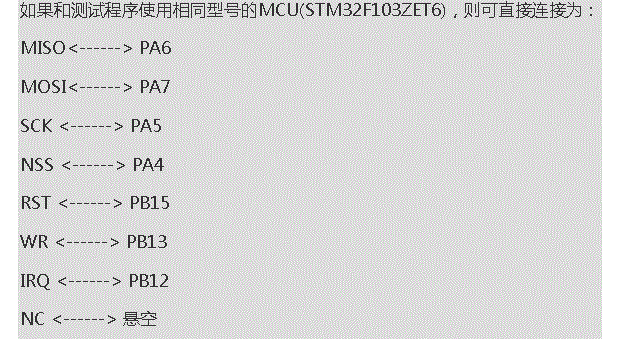

如果你的开发板上有对应的串口，可以直接按下图的引脚连接：

博主把代码烧录到板子后才发现自己的板子没有LED灯，是的，没有LED灯，博主都要哭了，于是一生气就把核心板撬掉了，换了一个指南者的板子，花费了两个小时把指南者板子上的引脚连到扩展板对应的引脚上，再烧录程序后发现程序可以正常运行。
下一步把板子装到小车上
接下来就是程序的问题了，把语音代码和红外避障的代码整合起来，虽然听起来简单，但实际遇到很多问题，比如中断冲突等，博主呕心沥血花了一周时间查阅数据手册和开发手册，终于解决了问题。
于是赶紧把小车放到地上调试，结果遇到了一个更麻烦的问题，LD3320自带的咪头引脚很短，而语音识别的距离很近，所以小车放在地上根本无法识别语音指令，于是博主不得不接着查阅数据手册，发现35寄存器可以修改语音识别的距离，历程中默认值是0x43，值越大识别距离越远，但同时识别的准确率会严重降低，官方推荐的值为40H—55H，重新调试程序后发现语音识别的距离还不是很理想（其实并没有多大改变），不得已，只能想其他的办法。
某天博主正在吃午饭的时候，突发奇想，能不能把咪头拆下来，再引两根线出来不就解决了吗（窃喜），幸亏博主在付诸实践之前先逛了逛论坛，里面有大牛说线太长会导致信号衰减，语音无法识别，于是博主放弃了这个念头，没敢用于实践。但这个问题怎么解决呢？博主盯着手中的筷子，突然有了一个大胆的想法，用筷子把语音模块架高，
最后，博主含泪牺牲了自己的筷子解决了这个问题。

做到这里语音控制小车基本上就完成了，但博主可不是就这样轻易满足的，博主开始想的是小车转弯的角度是90度然后停下，但实际小车会一直不停的旋转，原因是输入语音命令后，代码会把语音命令写到芯片中，然后main（）函数会一直循环扫描等待新的语音命令输入，在这个规程中，代码会一直执行上次输入的语音命令，于是修改了部分代码，使每次循环把语音命令清零，解决了这个问题。

#include "LD3320.h"
#include "motor.h"
#include "redvoid.h"
#include "stm32f10x_spi.h"
#include "inteRFace.h"

uint8 nAsrStatus = 0;
uint8 nLD_Mode = LD_MODE_IDLE;
uint8 ucRegVal;
int f=1;
int key=1;
int key1=1;
extern uint8 nAsrRes=0;
///ÓÃ»§ÐÞ¸Ä
void LD3320_main(void)
{
      LD3320_init();
      nAsrStatus = LD_ASR_NONE;
}

static uint8 LD_AsrAddFixed(void)
{
      uint8 k, flag;
      uint8 nAsrAddLength;
      #define DATE_A 11
      #define DATE_B 20
      uint8  sRecog[DATE_A][DATE_B] = {
                              "zhi xing",
                  "qian jin",
                              "hou tui",
                              "zuo zhuan",
                              "you zhuan",
                              "bi zhang",
                  "ting zhi" ,
                  "ting",
                  "bian dao",
                  "zuopian",
               "youpian"
                                                                                                                                    };
      uint8  pCode[DATE_A] = {
                                                                                                                              CODE_ZX,
                                                CODE_QJ,
                                                                                                                              CODE_HT,
                                                                                                                              CODE_ZZ,
                                                                                                                              CODE_YZ,
                                                                                                                              CODE_BZ,
                                          CODE_TZ ,
                                          CODE_TI ,
                                          CODE_BD ,
                                          CODE_ZP ,
                                          CODE_YP
                                                                                                                     };
      flag = 1;
      for (k=0; k
      {
            if(LD_Check_ASRBusyFlag_b2() == 0)
            {
                     flag = 0;
                     break;
            }

            LD_WriteReg(0xc1, pCode[k] );
            LD_WriteReg(0xc3, 0);
            LD_WriteReg(0x08, 0x04);
            LD3320_delay(1);
            LD_WriteReg(0x08, 0x00);
            LD3320_delay(1);

            for (nAsrAddLength=0; nAsrAddLength
            {
                     if (sRecog[k][nAsrAddLength] == 0)
                              break;
                     LD_WriteReg(0x5, sRecog[k][nAsrAddLength]);
            }
            LD_WriteReg(0xb9, nAsrAddLength);
            LD_WriteReg(0xb2, 0xff);
            LD_WriteReg(0x37, 0x04);
      }
      return flag;
}

void Board_text(uint8 Code_Val)
{
      switch(Code_Val)
      {
            case CODE_ZX:
                     CarGo();
            Key_LED();
                     break;
                     case CODE_QJ:
                     CarGo();
                     Key_LED();
                     break;
            case CODE_HT:
                     CarBack();
                     Flicker_LED();
                     break;
            case CODE_ZZ:
//                      if(key1==1){key=1;}
                     CarLeft();
               Jt_LED();
                        Delayms(1000);
                              CarStop();
            //       Code_Val=7;
break;
            case CODE_YZ:
                     CarRight();
                     On_LED();
                     break;
            case CODE_BZ:
                     VoidRun();
               Off_LED();
                     break;
            case CODE_TZ:
                     CarStop();
            break;
                              case CODE_TI:
                     CarStop();
            break;
                              case CODE_BD:
                     CarChange();
            break;
                     case CODE_ZP:
                     CarStop();
            break;
                     case CODE_YP:
                     CarStop();
            break;
            default:
                     break;
      }
}
/*
*/
//static void Delay_ms(uint16 i)
//{
//       unsigned char a,b;
//       for(;i>0;i--)
//             for(b=4;b>0;b--)
//                   for(a=113;a>0;a--);
//}

void Flicker_LED(void)
{
      LED1_ON();
      LED2_OFF();
      LED3_OFF();
      Delayms(1000);
      LED1_OFF();
      LED2_OFF();
      LED3_OFF();
      Delayms(1000);
}

void Key_LED(void)
{
      LED2_ON();
      LED1_OFF();
      LED3_OFF();
}

void Off_LED(void)
{
      LED1_OFF();
      LED2_OFF();
      LED3_OFF();
}
void On_LED(void)
{
      LED1_ON();
      LED2_ON();
      LED3_ON();
}
void Jt_LED(void)
{
      LED3_ON();
      LED1_OFF();
      LED2_OFF();
      Delayms(1000);
      LED3_OFF();
      LED1_OFF();
      LED2_OFF();
      Delayms(1000);
}
static void LD3320_init(void)
{
      LD3320_GPIO_Cfg();
      LD3320_EXTI_Cfg();
      LD3320_SPI_cfg();
      LED_GPIO_cfg();
      LD_reset();
}

static void LD3320_GPIO_Cfg(void)
{
            GPIO_InitTypeDef GPIO_InitStructure;
            RCC_APB2PeriphclockCmd(LD3320RST_GPIO_CLK | LD3320CS_GPIO_CLK,ENABLE);
            //LD_CS       /RSET
            GPIO_InitStructure.GPIO_Pin =LD3320CS_PIN;
            GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
            GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
            GPIO_Init(LD3320CS_GPIO_PORT,&GPIO_InitStructure);
            GPIO_InitStructure.GPIO_Pin =LD3320RST_PIN;
            GPIO_Init(LD3320RST_GPIO_PORT,&GPIO_InitStructure);
}

周奕

2022-1-27 11:55:46

static void LD3320_EXTI_Cfg(void)
{
  EXTI_InitTypeDef EXTI_InitStructure;
      NVIC_InitTypeDef NVIC_InitStructure;
  GPIO_InitTypeDef GPIO_InitStructure;
      RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO,ENABLE);

      RCC_APB2PeriphClockCmd(LD3320IRQ_GPIO_CLK, ENABLE);
  GPIO_InitStructure.GPIO_Pin =LD3320IRQ_PIN;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_Init(LD3320IRQ_GPIO_PORT, &GPIO_InitStructure);
  GPIO_EXTILineConfig(LD3320IRQEXIT_PORTSOURCE, LD3320IRQPINSOURCE);
  EXTI_InitStructure.EXTI_Line = LD3320IRQEXITLINE;
  EXTI_InitStructure.EXTI_Mode = EXTI_Mode_Interrupt;
  EXTI_InitStructure.EXTI_trigger =EXTI_Trigger_Falling;
  EXTI_InitStructure.EXTI_LineCmd = ENABLE;
  EXTI_Init(&EXTI_InitStructure);
  NVIC_InitStructure.NVIC_IRQChannel = LD3320IRQN;
  NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 1;
  NVIC_InitStructure.NVIC_IRQChannelSubPriority = 1;
  NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
  NVIC_Init(&NVIC_InitStructure);
}

static void LD3320_SPI_cfg(void)
{
      SPI_InitTypeDef  SPI_InitStructure;
      GPIO_InitTypeDef GPIO_InitStructure;
      RCC_APB2PeriphClockCmd(LD3320SPI_CLK,ENABLE);
  RCC_APB2PeriphClockCmd(LD3320WR_GPIO_CLK | LD3320SPIMISO_GPIO_CLK | LD3320SPIMOSI_GPIO_CLK | LD3320SPISCK_GPIO_CLK,ENABLE);

      GPIO_InitStructure.GPIO_Pin = LD3320SPIMISO_PIN;
      GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
      GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
      GPIO_Init(LD3320SPIMISO_GPIO_PORT,&GPIO_InitStructure);

      GPIO_InitStructure.GPIO_Pin = LD3320SPIMOSI_PIN;
      GPIO_Init(LD3320SPIMOSI_GPIO_PORT,&GPIO_InitStructure);

      GPIO_InitStructure.GPIO_Pin = LD3320SPISCK_PIN;
      GPIO_Init(LD3320SPISCK_GPIO_PORT,&GPIO_InitStructure);

      GPIO_InitStructure.GPIO_Pin = LD3320WR_PIN;
      GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
      GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
      GPIO_Init(LD3320WR_GPIO_PORT, &GPIO_InitStructure);
      LD_CS_H();
      SPI_Cmd(LD3320SPI, DISABLE);

      SPI_InitStructure.SPI_Direction = SPI_Direction_2Lines_FullDuplex;
      SPI_InitStructure.SPI_Mode = SPI_Mode_Master;
      SPI_InitStructure.SPI_DataSize = SPI_DataSize_8b;
      SPI_InitStructure.SPI_CPOL = SPI_CPOL_High;
      SPI_InitStructure.SPI_CPHA = SPI_CPHA_1Edge;
      SPI_InitStructure.SPI_NSS = SPI_NSS_Soft;
      SPI_InitStructure.SPI_BaudRatePrescaler = SPI_BaudRatePrescaler_64;  SYSCLK/128
      SPI_InitStructure.SPI_FirstBit = SPI_FirstBit_MSB;
      SPI_InitStructure.SPI_CRCPolynomial = 7;
      SPI_Init(LD3320SPI, &SPI_InitStructure);
      SPI_Cmd(LD3320SPI, ENABLE);
}

static void LED_GPIO_cfg(void)
{
            GPIO_InitTypeDef GPIO_InitStructure;

            RCC_APB2PeriphClockCmd(LED1_GPIO_CLK | LED2_GPIO_CLK | LED3_GPIO_CLK,ENABLE);

            GPIO_InitStructure.GPIO_Pin = LED1_PIN;
            GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
            GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
            GPIO_Init(LED1_GPIO_PORT, &GPIO_InitStructure);
            GPIO_InitStructure.GPIO_Pin = LED2_PIN;
            GPIO_Init(LED2_GPIO_PORT, &GPIO_InitStructure);
            GPIO_InitStructure.GPIO_Pin = LED3_PIN;
            GPIO_Init(LED3_GPIO_PORT, &GPIO_InitStructure);

            LED1_OFF();
            LED2_OFF();
            LED3_OFF();
}
void EXTI15_10_IRQHandler(void)
{
      if(EXTI_GetITStatus(LD3320IRQEXITLINE)!= RESET )
      {
            ProcessInt();
            EXTI_ClearFlag(LD3320IRQEXITLINE);
      }
}
static void LD3320_delay(unsigned long uldata)
{
      unsigned int i  =  0;
      unsigned int j  =  0;
      unsigned int k  =  0;
      for (i=0;i<5;i++)
      {
            for (j=0;j
            {
                     k = 200;
                     while(k--);
            }
      }
}
uint8 RunASR(void)
{
      uint8 i=0;
      uint8 asrflag=0;
      for (i=0; i<5; i++)
      {
            LD_AsrStart();
            LD3320_delay(100);
            if (LD_AsrAddFixed()==0)
            {
                     LD_reset();
                     LD3320_delay(50);
                     continue;
            }
            LD3320_delay(10);
            if (LD_AsrRun() == 0)
            {
                     LD_reset();
                     LD3320_delay(50);
                     continue;
            }
            asrflag=1;
            break;
      }
      return asrflag;
}

static void LD_reset(void)
{
      LD_RST_H();
      LD3320_delay(100);
      LD_RST_L();
      LD3320_delay(100);
      LD_RST_H();
      LD3320_delay(100);
      LD_CS_L();
      LD3320_delay(100);
      LD_CS_H();
      LD3320_delay(100);
}

static void LD_AsrStart(void)
{
      LD_Init_ASR();
}

uint8 LD_Check_ASRBusyFlag_b2(void)
{
      uint8 j;
      uint8 flag = 0;
      for (j=0; j<10; j++)
      {
            if (LD_ReadReg(0xb2) == 0x21)
            {
                     flag = 1;
                     break;
            }
            LD3320_delay(10);
      }
      return flag;
}
///ÖÐ¼ä²ãend

///¼Ä´æÆ÷²Ù×÷
static uint8 spi_send_byte(uint8 byte)
{
      while (SPI_I2S_GetFlagStatus(LD3320SPI, SPI_I2S_FLAG_TXE) == RESET);
      SPI_I2S_SendData(LD3320SPI,byte);
      while (SPI_I2S_GetFlagStatus(LD3320SPI,SPI_I2S_FLAG_RXNE) == RESET);
      return SPI_I2S_ReceiveData(LD3320SPI);
}

static void LD_WriteReg(uint8 data1,uint8 data2)
{
      LD_CS_L();
      LD_SPIS_L();
      spi_send_byte(0x04);
      spi_send_byte(data1);
      spi_send_byte(data2);
      LD_CS_H();
}

static uint8 LD_ReadReg(uint8 reg_add)
{
      uint8 i;
      LD_CS_L();
      LD_SPIS_L();
      spi_send_byte(0x05);
      spi_send_byte(reg_add);
      i=spi_send_byte(0x00);
      LD_CS_H();
      return(i);
}

uint8 LD_GetResult(void)
{
      return LD_ReadReg(0xc5);
}

static uint8 LD_AsrRun(void)
{
      LD_WriteReg(0x35, MIC_VOL);
      LD_WriteReg(0x1C, 0x09);
      LD_WriteReg(0xBD, 0x20);
      LD_WriteReg(0x08, 0x01);
      LD3320_delay( 5 );
      LD_WriteReg(0x08, 0x00);
      LD3320_delay( 5);

      if(LD_Check_ASRBusyFlag_b2() == 0)
      {
            return 0;
      }
      LD_WriteReg(0xB2, 0xff);
      LD_WriteReg(0x37, 0x06);
      LD_WriteReg(0x37, 0x06);
      LD3320_delay(5);
      LD_WriteReg(0x1C, 0x0b);
      LD_WriteReg(0x29, 0x10);
      LD_WriteReg(0xBD, 0x00);
      return 1;
}

孔维源

2022-1-27 11:55:55

static void ProcessInt(void)
{
      uint8 nAsrResCount=0;
      ucRegVal = LD_ReadReg(0x2B);
      LD_WriteReg(0x29,0) ;
      LD_WriteReg(0x02,0) ;

      if((ucRegVal & 0x10) && LD_ReadReg(0xb2)==0x21 && LD_ReadReg(0xbf)==0x35)
      {
                     nAsrResCount = LD_ReadReg(0xba);

                     if(nAsrResCount>0 && nAsrResCount<=4)
                     {
                              nAsrStatus=LD_ASR_FOUNDOK;
                     }
                     else
                     {
                              nAsrStatus=LD_ASR_FOUNDZERO;
                     }
      }
      else
      {
            nAsrStatus=LD_ASR_FOUNDZERO;//Ö´ÐÐÃ»ÓÐÊ¶±ð
      }

      LD_WriteReg(0x2b,0);
      LD_WriteReg(0x1C,0);//Ð´0:ADC²»¿ÉÓÃ
      LD_WriteReg(0x29,0);
      LD_WriteReg(0x02,0);
      LD_WriteReg(0x2B,0);
      LD_WriteReg(0xBA,0);
      LD_WriteReg(0xBC,0);
      LD_WriteReg(0x08,1);//Çå³ýFIFO_DATA
      LD_WriteReg(0x08,0);//Çå³ýFIFO_DATAºó ÔÙ´ÎÐ´0
}

static void LD_Init_Common(void)
{
      LD_ReadReg(0x06);
      LD_WriteReg(0x17, 0x35);
      LD3320_delay(5);
      LD_ReadReg(0x06);

      LD_WriteReg(0x89, 0x03);
      LD3320_delay(5);
      LD_WriteReg(0xCF, 0x43);
      LD3320_delay(5);
      LD_WriteReg(0xCB, 0x02);

      /*PLL setting*/
      LD_WriteReg(0x11, LD_PLL_11);
      if (nLD_Mode == LD_MODE_MP3)
      {
            LD_WriteReg(0x1E, 0x00);
            LD_WriteReg(0x19, LD_PLL_MP3_19);
            LD_WriteReg(0x1B, LD_PLL_MP3_1B);
            LD_WriteReg(0x1D, LD_PLL_MP3_1D);
      }
      else
      {
            LD_WriteReg(0x1E,0x00);
            LD_WriteReg(0x19, LD_PLL_ASR_19);
            LD_WriteReg(0x1B, LD_PLL_ASR_1B);
      LD_WriteReg(0x1D, LD_PLL_ASR_1D);
      }
      LD3320_delay(5);

      LD_WriteReg(0xCD, 0x04);
      LD_WriteReg(0x17, 0x4c);
      LD3320_delay(1);
      LD_WriteReg(0xB9, 0x00);
      LD_WriteReg(0xCF, 0x4F);
      LD_WriteReg(0x6F, 0xFF);
}

static void LD_Init_ASR(void)
{
      nLD_Mode=LD_MODE_ASR_RUN;
      LD_Init_Common();

      LD_WriteReg(0xBD, 0x00);
      LD_WriteReg(0x17, 0x48);
      LD3320_delay(5);
      LD_WriteReg(0x3C, 0x80);
      LD_WriteReg(0x3E, 0x07);
      LD_WriteReg(0x38, 0xff);
      LD_WriteReg(0x3A, 0x07);
      LD_WriteReg(0x40, 0);
      LD_WriteReg(0x42, 8);
      LD_WriteReg(0x44, 0);
      LD_WriteReg(0x46, 8);
      LD3320_delay( 1 );
}
/*********************************************END OF FILE**********************/

更多回帖

贾虎世

怎样去设计一种基于STM32的循迹避障小车呢

回帖（3）

王冬梅

周奕

孔维源

相关问答

如何去实现一种基于单片机的避障小车及自动循迹的设计？

关于STM32智能循迹避障小车

基于51单片机红外避障循迹模块的代码程序该怎样去实现呢

循迹避障小车

msp430的超声波测距避障和循迹避障小车程序，跪求！

怎样去设计一种基于超声波模块的智能避障小车呢

如何利用STM32F103C8T6完成循迹避障小车的制作？

请问循迹避障当中的四路循迹模块与红外寻光&避障模块有什么区别？

基于STC12C5A60S2的智能循迹小车该怎样去设计呢

怎样去设计一种基于STM32F103芯片的智能小车呢

20万+工程师都在用，免费PCB检查工具
